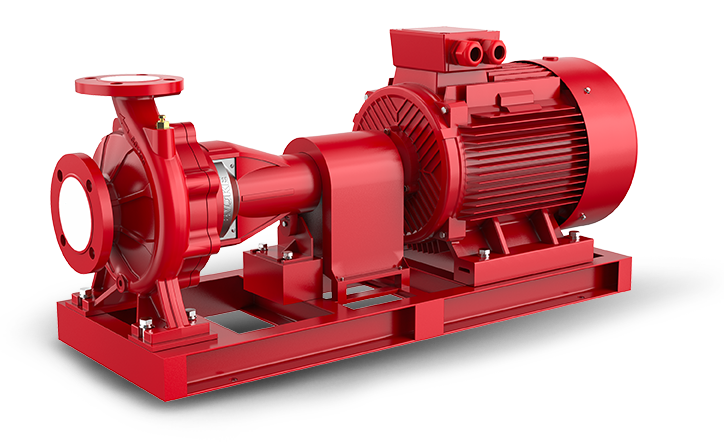

Horizontal End Suction Fire Pump
Certified Performance
with Maximum Efficiency & Minimal Downtime
Mena Mech’s Horizontal End Suction Fire Pumps are designed for durability, low maintenance, and high performance. The back-pull-out design allows easy servicing without disconnecting piping. Compatible with electric motors or diesel engines, these pumps meet NFPA requirements and are ideal where water sources are above ground.
Available with various materials and configurations, they ensure reliable flow and pressure delivery across applications.
Performance Range
- Flow Rate Range: 50 – 1000 US GPM
- Pressure Rating: 5 – 15 BAR
- Speed Range: 1450 – 3550 RPM
Specifications:
- Flow and pressure range customized based on project needs
- Fully tested prior to delivery per UL , NFPA requirements
Features
Pump Casing: Heavy-duty, integrally cast with centerline discharge and O-ring sealed joints to prevent leakage.
Casing Wear Ring: Replaceable wear rings are installed to reduce internal wear.
Impeller: Dynamically balanced enclosed impeller designed for easy back-pull-out maintenance.
Bearing Housing: Robust housing that isolates and seals internal components from contaminants.
Lantern Ring: Ensures even water distribution around the shaft for cooling and lubrication.
Gland Packing: Graphite packing for optimal sealing and smooth shaft rotation.
Casing Cover: Built-in stuffing box design accommodates high pressure and includes room for packing rings and the lantern ring.
Shaft Sleeve: Corrosion-resistant sleeve that protects the shaft and minimizes wear.
Bearings: High-performance grease-lubricated bearings for long operational life.
Shaft: Precision-machined high-strength shaft built with generous safety margins for optimal torque transmission and minimal deflection.
