Check Valves

High-pressure rated swing check valve

Backflow prevention and minimal pressure loss in fire protection systems.

The UL/FM/AWWA C508 Swing Check Valve is a resilient seated valve rated at 350 psi — one of the highest in its class. Designed with a full waterway passage, it ensures low-pressure drop even at elevated flow rates. The valve supports inline maintenance without disassembly from the pipeline, making it ideal for critical fire protection and industrial systems. Built to comply with ASME and ANSI standards, it offers flexibility in installation and dependable performance.

Swing Check Valve

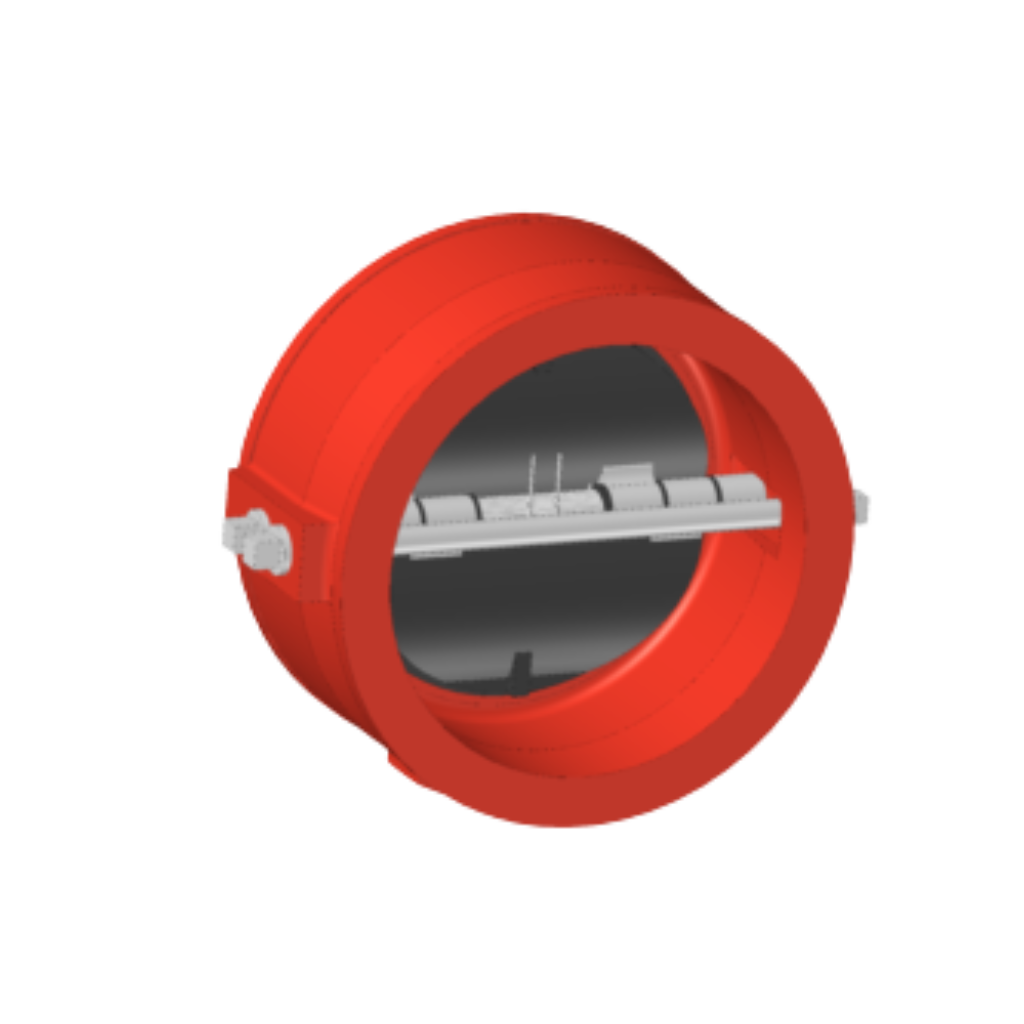

Double-Door Check Valve

Specifications:

Standard: UL/FM, AWWA C508
Max Pressure: 350 psi
Body Design: Full Waterway
Face-to-Face: ASME B16.1
Flanges: ANSI B16.1 Class 125 / ANSI B16.42 Class 150
Seat Type: Resilient Seated
Maintenance: Inline disassembly without removal

Features

UL/FM approved at 350 psi pressure
Resilient seated, full waterway design
Minimal pressure loss at high flow
Inline serviceable — no need to remove from pipeline
Flanges per ANSI B16.1 (Class 125) or B16.42 (Class 150)
Face-to-face dimensions per ASME B16.1
